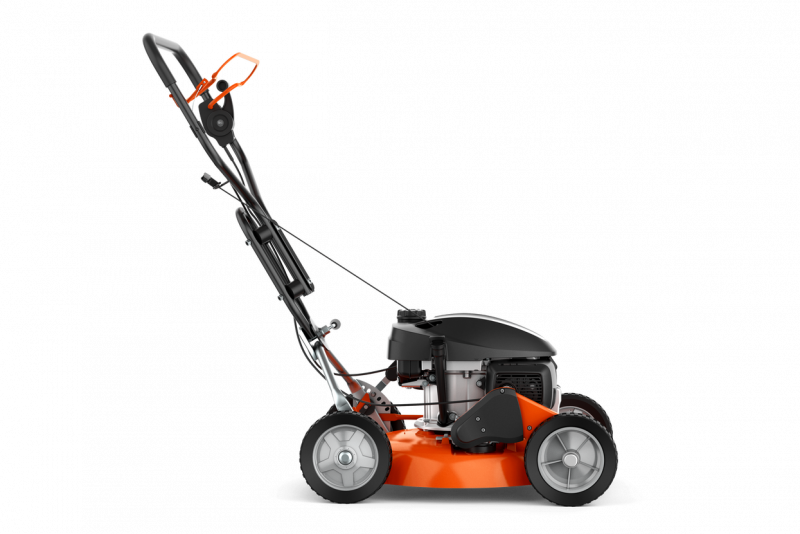

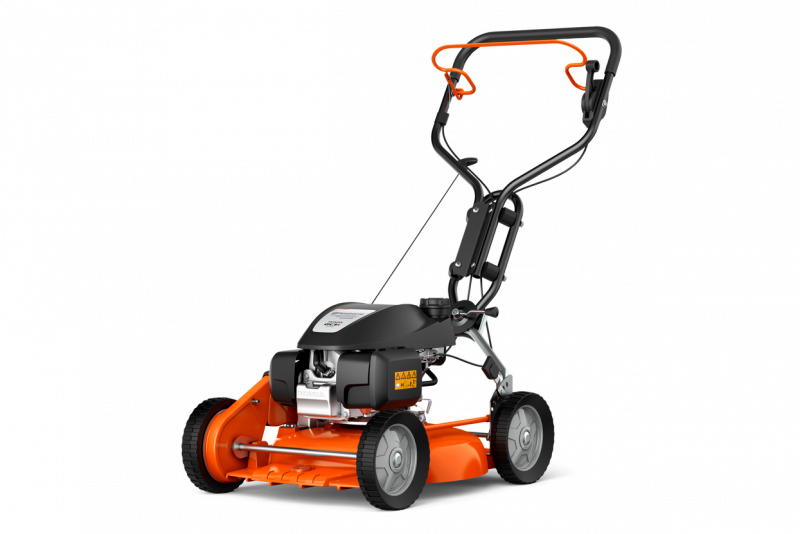

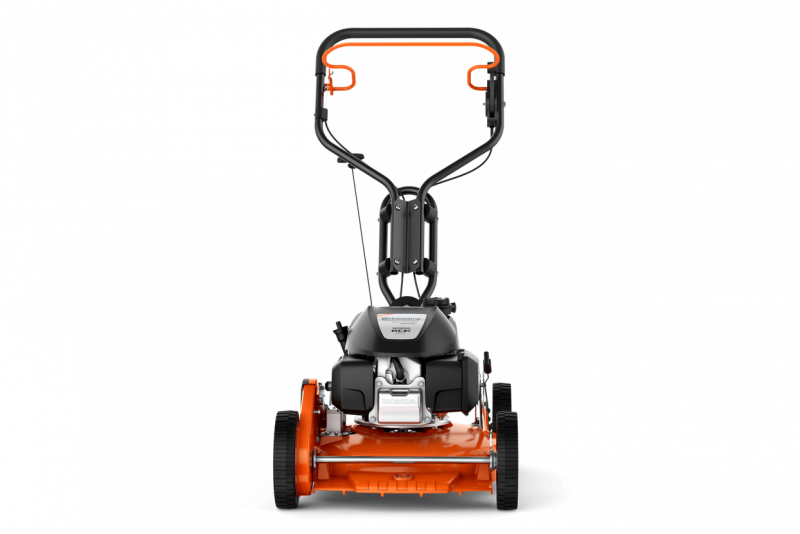

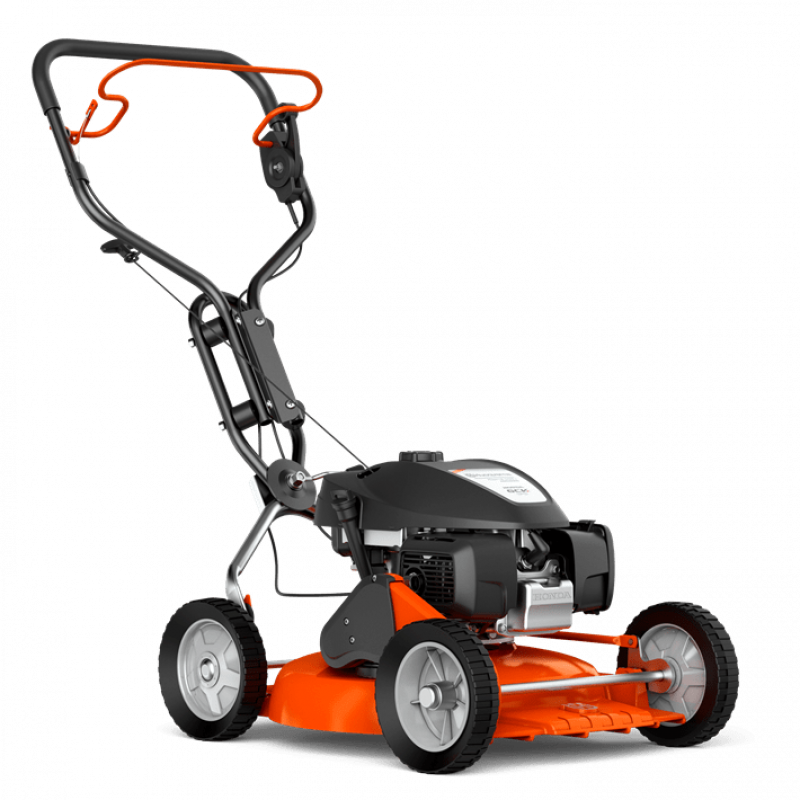

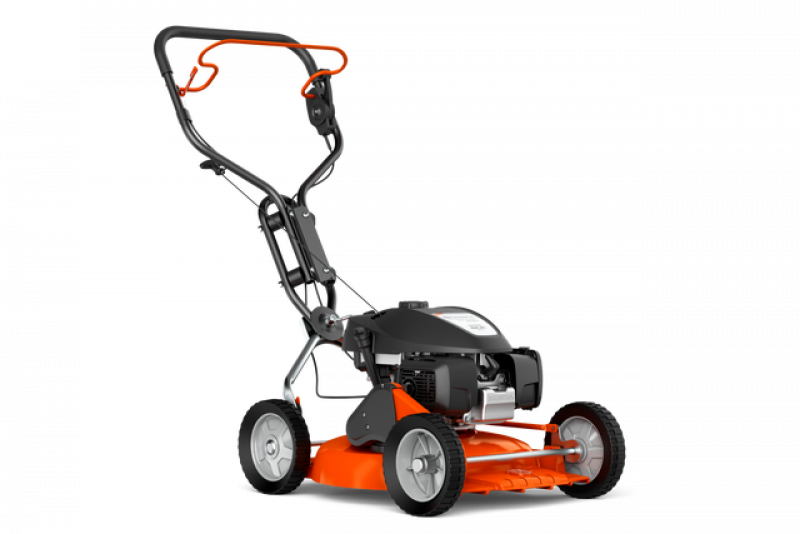

A compact and dedicated BioClip® mower with front-wheel drive for commercial use. The standard sized 48 cm cutting deck makes it to a perfect solution for complex and narrow areas or as a complementary trimming tool for ride-on or robotic mowers. Equipped with high-specified and easy-start Honda GCV-engines, cast aluminium decks and an ergonomic side-adjustable and effective anti-vibrated handle system.
Aluminium chassis
Heavy-duty, cast aluminium chassis provides increased strength and longer life.
Side adjustable handlebar
The handlebar is adjustable both horizontally and vertically for optimum working positions and improved ergonomics.
Honda GCVx engine
Engine in the new GCVx series. Reliable, powerful and easy starting with Auto Choke. EU stage V certified for more stringent regulations.
Stainless steel rims
8-inch stainless steel rims with double-sealed bearings. Rubber tyres provide deeper tread depth for increased traction and a more comfortable drive.
Central cutting height adjustment
Quick and easy adjustment of the grass cutting height. One lever controls the whole deck.
BioClip®
Cutting method BioClip®. The grass is cut twice and finely chopped before being returned to the lawn as natural fertiliser.
Specification
Engine | |
Engine name | GCVX-170 |
Cylinder displacement | 166 cm³ |
Net power at preset rpm Energy | 3.3 kW |
Net power at preset rpm | 2,900 rpm |
Engine brand | Honda |
Engine lubrication type | Splash |
Engine cooling | Air |
Exhaust emissions (CO2 EU V) | 862 g/kWh |
Cutting deck | |
Cutting methods | BioClip® |
Cutting width | 48 cm |
Cutting height adjustment | Central, spring-assisted |
Cutting height, min-max | 30-60 mm |
BioClip® plug | N/A |
BioClip® kit | Not available as accessory (NOT AVAILABLE) |
Cutting height steps | 6 |
Cutting deck material | Aluminium |
Drive System | |
Drive wheels | Front |
Drive system | Self-propelled, single speed |
Speed forward min | 4.5 km/h |
Equipment | |
Handle type | Anti-vibrated |
Soft grip | Yes |
Blade brake clutch (BBC) | No |
Throttle control | No |
Wheel bearing, front/rear | Yes/Yes |
Rims, material | Steel |
Water hose connection | No |
Handle height adjustment | 2 Step |
Side adjustable handle | Yes |
Dimensions | |
Wheel size, Front | 203 mm |
Wheel size, Rear | 203 mm |
Weight | 32.5 kg |
Foldable handle | No |
Wheelbase | 51.5 cm |
Sound and noise | |
Sound pressure level at operators ear | 78 dB(A) |
Sound power level, measured | 90 dB(A) |
Sound power level, guaranteed (LWA) | 91 dB(A) |
Capacity | |
Working area capacity (±20) | 800 m² |
Vibrations | |
Vibrations handlebar | 4.8 m/s² |
