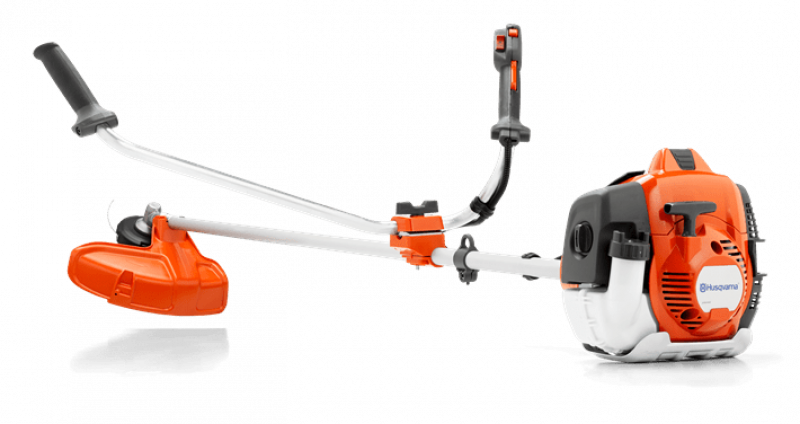

The 525RS petrol powered brush cutter is a powerful and versatile machine for heavy trimming. It has a robust design for reliable operation, even in demanding conditions. The machine is easy to use, maintain and service. The patented X-Torq® engine gives you more power, less fuel consumption and less exhaust emissions compared to a conventional engine.
Intuitive controls
The choke and purge are easy to reach and understand.
X-Torq® engine
The X-Torq® engine design reduces harmful exhaust emissions by up to 75% and increases fuel efficiency by up to 20%.
Offset handle bar
Angled handle bar with comfortable soft grips provides excellent grip and working position.
Easy starting
Air purge for very easy starting.
Auto return stop switch
When the machine is turned off, the stop button automatically returns to the start position for trouble free starting.
LowVib®
The LowVib anti vibration system effectively reduces vibrations from the handle and throttle control.
Metal skid plate
Durable metal skid plate protects the engine and fuel tank.
Stand alone starter
The stand alone starter makes it easy to change starter cord if needed.
Commercial grade 2-stage air filter
The commercial grade 2-stage air filter reduces servicing costs and also results in less engine wear.
Specification
Engine | |
Power output | 1 kW |
Cylinder displacement | 25.4 cm³ |
Maximum rpm output shaft | 6,500 rpm |
Maximum power speed | 8,500 rpm |
Idling speed | 3,000 rpm |
Clutch engagement speed (±120) | 4,000 rpm |
Torque, max. | 1.2 Nm |
Torque, max. at rpm | 6,000 rpm |
Fuel consumption | 600 g/kWh |
Fuel tank volume | 0.51 l |
Spark plug | NGK BPMR8Y |
Electrode gap | 0.65 mm |
Capacity | |
Cutting width | 45 cm |
Transmission | |
Gear ratio | 19 |
Drive gear angle | 30° |
Dimensions | |
Tube length | 1,500 mm |
Tube diameter | 24 mm |
Weight (excl. cutting equipment) | 5 kg |
Lubricant | |
Lubricant type | Husqvarna 2 stroke or equiv. at 50:1 |
Sound and noise | |
Sound power level, guaranteed (LWA) | 114 dB(A) |
Sound pressure level at operators ear | 98 dB(A) |
Vibrations | |
Equivalent vibration level (ahv, eq) left handle | 3.6 m/s² |
Equivalent vibration level (ahv, eq) right handle | 2.4 m/s² |
