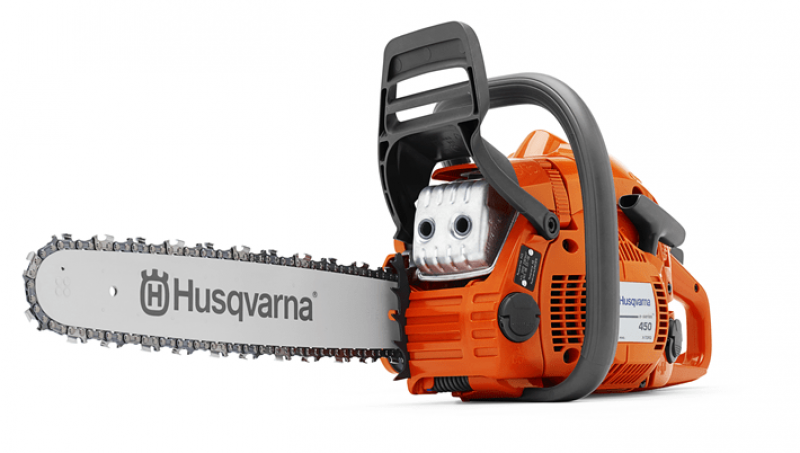

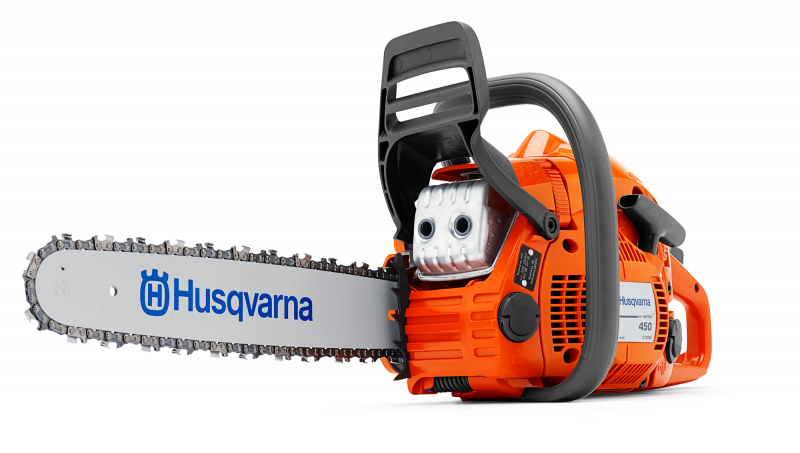

Second generation powerful all-round saw for people who value professional qualities in a saw. Starts easily also with a slower pull, comes with slimmer saw body and flip-up tank caps. The X-Torq® engine means lower fuel consumption and reduced emission levels. Auto return stop switch and visible fuel level makes the saw easier to handle. Equipped with Smart Start® and fuel pump to ensure easy starts.
Air Injection
Extends the interval between filter cleaning, improving efficiency and increases engine life.
X-Torq®
Delivers lower fuel consumption and reduced exhaust emission levels in accordance with the world´s most stringent environmental regulations.
Flip-up tank cap
The flip-up tank cap is easy to open and close when refueling.
Quick-release air filter
Facilitates cleaning and replacement of the air filter.
Auto return stop switch
Stop switch automatically resets to the ON position for trouble-free starting.
Ergonomic rear handle
Increased comfort with soft inlay, ergonomic trigger and assymetrical handle.
Felling marks
Distinct felling marks for better felling precision.
Smart Start®
The engine and starter have been designed so the machine starts quickly with minimum effort. Resistance in the starter cord is reduced by up to 40%.
Snap-lock cylinder cover
Snap-lock cylinder cover saves time when changing spark plugs and cleaning.
Three-piece crankshaft
Forged three-piece crankshaft giving maximum durability for the toughest applications.
Two mass principle
Effectively minimising vibrations by isolating the engine from the handles reducing operator fatigue.
Visible fuel level
Transparent fuel indicator makes it easy to check fuel level.
Easy starting
Air purge for very easy starting.
Inertia chain brake
Effective inertia-activated chain brake
Specification
Engine | |
Chain speed at max power | 17.3 m/s |
Power output | 2.4 kW |
Cylinder displacement | 50.2 cm³ |
Exhaust emissions (CO2 EU V) | 742 g/kWh |
Equipment | |
Pitch | .325" |
Chain type | SP33G |
Bar length (inch) | 20 in |
Recommended bar length, min-max | 33-50 cm |
Dimensions | |
Weight (excl. cutting equipment) | 5.1 kg |
Sound and noise | |
Sound power level, guaranteed (LWA) | 115 dB(A) |
Sound pressure level at operators ear | 104 dB(A) |
