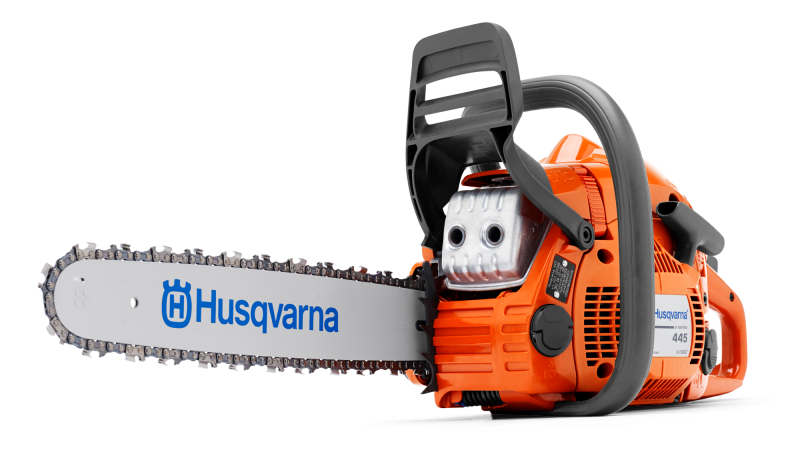

Second generation powerful all-round saw for people who value professional qualities in a saw. Starts easily also with a slower pull, comes with slimmer saw body and flip-up tank caps. The X-Torq® engine means lower fuel consumption and reduced emission levels. Auto return stop switch and visible fuel level makes the saw easier to handle. Equipped with Smart Start® and fuel pump to ensure easy starts.
Air Injection
Extends the interval between filter cleaning, improving efficiency and increases engine life.
X-Torq®
Delivers lower fuel consumption and reduced exhaust emission levels in accordance with the world´s most stringent environmental regulations.
Flip-up tank cap
The flip-up tank cap is easy to open and close when refueling.
Easy to start
Combined start/stop switch and air purge make the saw very easy to start.
Quick-release air filter
Facilitates cleaning and replacement of the air filter.
Felling marks
Distinct felling marks for better felling precision.
Smart Start®
The engine and starter have been designed so the machine starts quickly with minimum effort. Resistance in the starter cord is reduced by up to 40%.
Combined choke/stop control
Combined choke/stop control allows for easier starting and reduces the risk of the engine flooding.
Snap-lock cylinder cover
Snap-lock cylinder cover saves time when changing spark plugs and cleaning.
Three-piece crankshaft
Forged three-piece crankshaft giving maximum durability for the toughest applications.
Two mass principle
Effectively minimising vibrations by isolating the engine from the handles reducing operator fatigue.
Inertia chain brake
Effective inertia-activated chain brake
Visible fuel level
Transparent fuel indicator makes it easy to check fuel level.
Specification
Engine | |
Power output | 2.1 kW |
Cylinder displacement | 45.7 cm³ |
Exhaust emissions (CO2 EU V) | 920 g/kWh |
Equipment | |
Pitch | .325" |
Chain type | SP33G |
Bar length (inch) | 18 in |
Recommended bar length, min-max | 33-50 cm |
Dimensions | |
Weight (excl. cutting equipment) | 5.1 kg |
Sound and noise | |
Sound power level, guaranteed (LWA) | 114 dB(A) |
Sound pressure level at operators ear | 103 dB(A) |
Vibrations | |
Equivalent vibration level (ahv, eq) front handle | 3.1 m/s² |
Equivalent vibration level (ahv, eq) rear handle | 4.9 m/s² |
