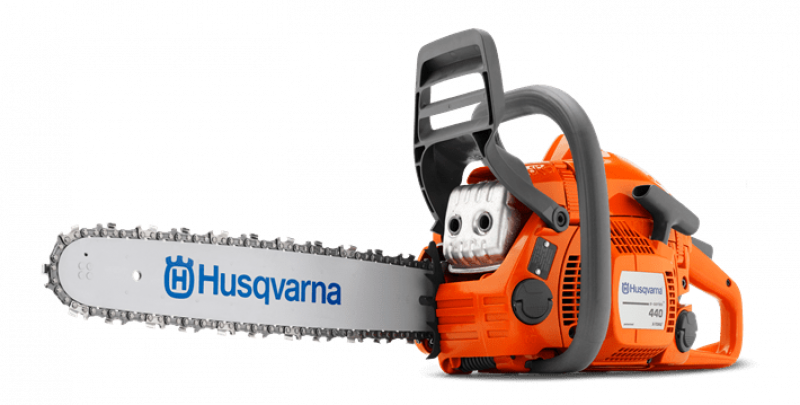

Second generation lightweight and efficient all-round saw, ideal for those looking for a chainsaw that is exceptionally easy to start and manoeuvre. Starts easily also with a slower pull, comes with slimmer saw body and flip-up tank caps. Featuring X-Torq® engine for lower fuel consumption and reduced emission levels. Equipped with Smart Start®, fuel pump and Auto return stop switch for easier starting.
Flip-up tank cap
The flip-up tank cap is easy to open and close when refueling.
Quick-release air filter
Facilitates cleaning and replacement of the air filter.
Smart Start®
The engine and starter have been designed so the machine starts quickly with minimum effort. Resistance in the starter cord is reduced by up to 40%.
Air Injection
Extends the interval between filter cleaning, improving efficiency and increases engine life.
Combined choke/stop control
Combined choke/stop control allows for easier starting and reduces the risk of the engine flooding.
X-Torq®
Delivers lower fuel consumption and reduced exhaust emission levels in accordance with the world´s most stringent environmental regulations.
Ergonomic rear handle
Increased comfort with soft inlay, ergonomic trigger and assymetrical handle.
Felling marks
Distinct felling marks for better felling precision.
Three-piece crankshaft
Forged three-piece crankshaft giving maximum durability for the toughest applications.
Snap-lock cylinder cover
Snap-lock cylinder cover saves time when changing spark plugs and cleaning.
Visible fuel level
Transparent fuel indicator makes it easy to check fuel level.
Two mass principle
Effectively minimising vibrations by isolating the engine from the handles reducing operator fatigue.
Easy starting
Air purge for very easy starting.
Inertia chain brake
Effective inertia-activated chain brake
Easy to start
Combined start/stop switch, Smart Start® and air purge make the saw very easy to start.
Specification
Engine | |
Power output | 1.8 kW |
Cylinder displacement | 40.9 cm³ |
Exhaust emissions (CO2 EU V) | 813 g/kWh |
Equipment | |
Pitch | .325" |
Chain type | SP33G |
Bar length (inch) | 16 in |
Recommended bar length, min-max | 33-45 cm |
Dimensions | |
Weight (excl. cutting equipment) | 4.4 kg |
Sound and noise | |
Sound power level, guaranteed (LWA) | 114 dB(A) |
Sound pressure level at operators ear | 102 dB(A) |
Vibrations | |
Equivalent vibration level (ahv, eq) front handle | 3.8 m/s² |
Equivalent vibration level (ahv, eq) rear handle | 4.2 m/s² |
