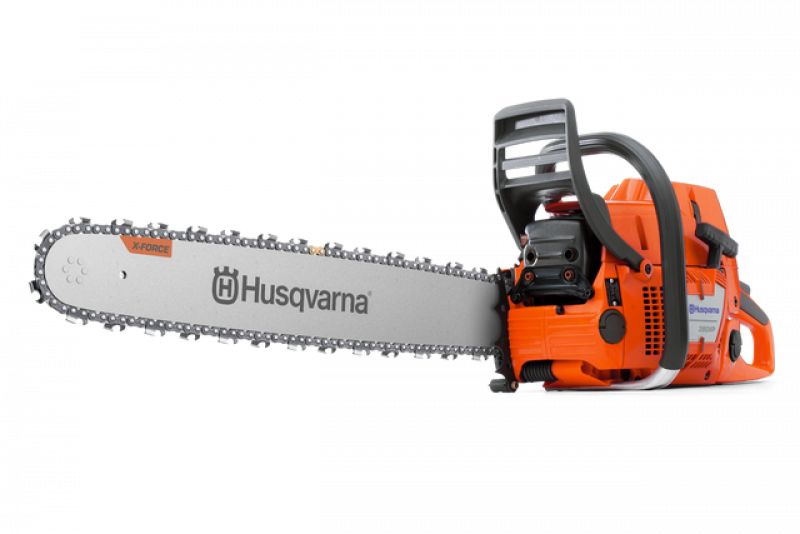

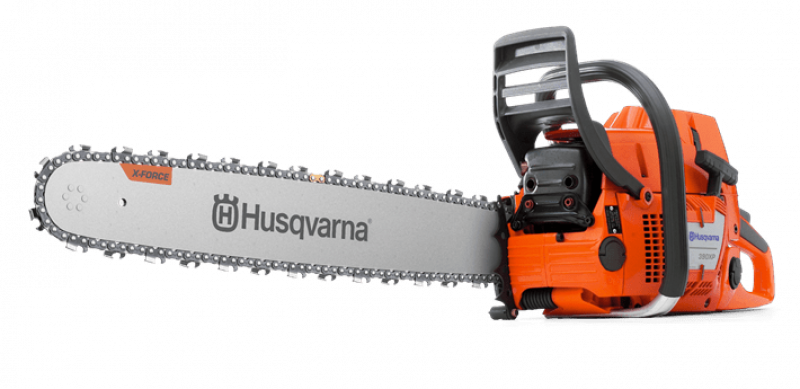

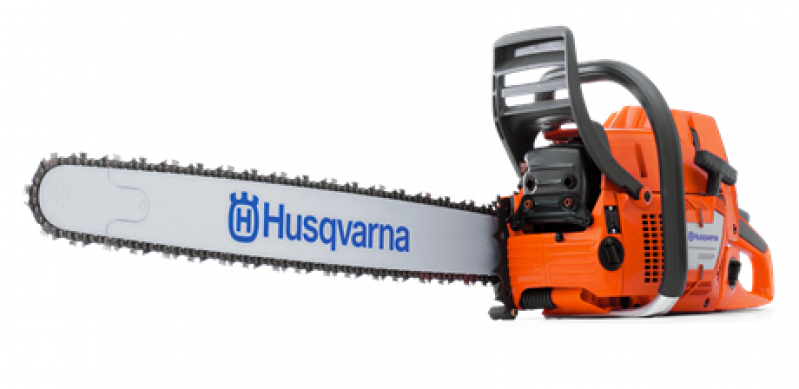

A modern large XP® chainsaw with a very powerful engine. Performance and vibration damping are dimensioned for sawing jobs that require longer cutting equipment. The 390 XP® heavy duty chainsaw has excellent ergonomics and comfort make it easy to handle despite its size and high power. Smart Start® facilitates starting and rubber-mounted carburettor boosts durability and smooths operation.
Air Injection
Extends the interval between filter cleaning, improving efficiency and increases engine life.
Adjustable oil pump
Adjustable oil pump allows you to adjust chain lubrication to suit all working applications.
Quick-release air filter
Facilitates cleaning and replacement of the air filter.
Quick chain adjustments
Side-mounted chain tensioner is conveniently located to allow quick and easy chain adjustment.
Magnesium crankcase
Sturdily built crankcase withstands high rpms and tough professional use, ensuring a long service life.
Snap-lock
Snap-lock cylinder cover saves time when changing spark plugs and cleaning.
Three-piece crankshaft
Forged three-piece crankshaft giving maximum durability for the toughest applications.
Two mass principle
Effectively minimising vibrations by isolating the engine from the handles reducing operator fatigue.
Smart Start®
The engine and starter have been designed so the machine starts quickly with minimum effort. Resistance in the starter cord is reduced by up to 40%.
Ergonomic handles
Angled front handle allows the operator to work in a natural working position reducing fatigue.
Inertia chain brake
Effective inertia-activated chain brake
Specification
Engine | |
Chain speed at max power | 21.4 m/s |
Power output | 4.8 kW |
Cylinder displacement | 88 cm³ |
Equipment | |
Pitch | 3/8" |
Chain type | C85 |
Bar length (inch) | 24 in |
Recommended bar length, min-max | 45-70 cm |
Dimensions | |
Weight (excl. cutting equipment) | 7.3 kg |
Sound and noise | |
Sound power level, guaranteed (LWA) | 119 dB(A) |
Sound pressure level at operators ear | 107 dB(A) |
Vibrations | |
Equivalent vibration level (ahv, eq) front handle | 6.5 m/s² |
Equivalent vibration level (ahv, eq) rear handle | 7.5 m/s² |
