Robust, reliable and easy to use saw with ample cutting performance for homeowners. The perfect garden chainsaw for occasional cutting tasks such as cutting firewood and felling smaller trees. Starts quickly and handles easily, and thanks to the side mounted chain tensioner, tensioning the chain is both quick and easy.
Air Injection
Extends the interval between filter cleaning, improving efficiency and increases engine life.
Smart Start®
The engine and starter have been designed so the machine starts quickly with minimum effort. Resistance in the starter cord is reduced by up to 40%.

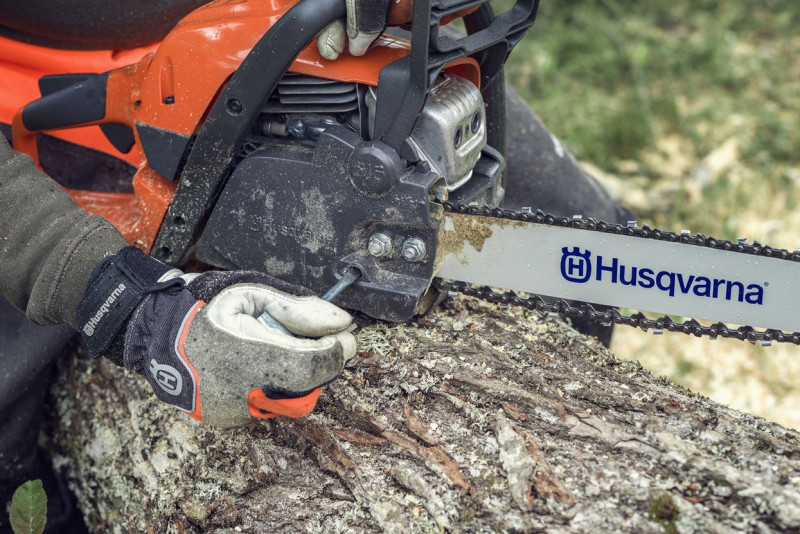

Chain tensioning from the side
Allows quick and convenient chain tensioning.
X-Torq®
Delivers lower fuel consumption and reduced exhaust emission levels in accordance with the world´s most stringent environmental regulations.
Inertia chain brake
Effective inertia-activated chain brake
Fuel pump
Fuel pump designed for easy starting.
Combined choke/stop control
Combined choke/stop control allows for easier starting and reduces the risk of the engine flooding.
Two mass principle
Effectively minimising vibrations by isolating the engine from the handles reducing operator fatigue.
Specification
Engine | |
Chain speed at max power | 16.8 m/s |
Power output | 1.6 kW |
Cylinder displacement | 38 cm³ |
Exhaust emissions (CO2 EU V) | 804 g/kWh |
Equipment | |
Pitch | 3/8" mini |
Chain type | S93G |
Bar length (inch) | 16 in |
Recommended bar length, min-max | 35-40 cm |
Dimensions | |
Weight (excl. cutting equipment) | 4.7 kg |
Sound and noise | |
Sound power level, guaranteed (LWA) | 116 dB(A) |
Sound pressure level at operators ear | 102 dB(A) |
Vibrations | |
Equivalent vibration level (ahv, eq) front handle | 3.72 m/s² |
Equivalent vibration level (ahv, eq) rear handle | 5.5 m/s² |
